PCB Used Vacuum Packing ESD Pet/Aluminum/PE Laminated Foil Bag
Foshan Shunde Topcod Industry Co., Ltd.- Shape：Seal Bag
- Material：Laminated Material
- Feature：Moisture Proof, Recyclable, Bio-Degradable, Shock Resistance, Antistatic, Dustproof
- Application：Promotion, Household, Chemical, Industrial Use
- Making Process：Composite Packaging Bag
- Raw Materials：High Pressure Polyethylene Plastic Bag
Base Info
- Specification：22X25CM
- Transport Package：Carton
- Printing：Blank or Customized
- Type：Flat, Cubic, Gusset, Ziplock
- Applications：Electronics Components,Optical Lens
- Puncture Resistance：>100n
- Peel Strength：>3.0n, 15mm
- Thickness：0.085-0.14 mm
- 4 Layers：Pet,Al,Ny,PE
- Bag Variety：Upright Bag
- Model NO.：PB-AL
- Trademark：TOPCOD,OEM
- Origin：Foshan China
- HS Code：3923210000
- Production Capacity：10000PCS,Day
Description
140±10μm (Total thickness of layer of glue and static is 5-10μm) ZPhysical properties Material Parameters Lay 1 Polyester (PET) 12μm Lay 2 Aluminum foil (AL) 7μm Lay 3 Nylon (NY) 15μm Lay 4 Polyethylene (PE) 100μm
Performance of
Anti-static1x105Ω<resistance of outer surface<1x109Ω
1x105Ω<resistance of internal surface<1x1011Ω
Metal layer<1x100Ω ANSI/ESD STM 11.1 Friction voltage: <100V ESD ADV 11.2 2 Electrostatic shielding Remanent shield voltage: <20V EIA 541 3 EMI Attenuation >60 dB MIL-PRF-81705 4 Life time After using 1 year, still meet the requirements of No. 2/3/4 MIL-PRF-81705 5 Structure PET/ AL/ NY/ PE 6 Thickness > 0.14 mm 7 Size Refer to drawing's marks 8 Heat-seal strength > 30N/ 15mm 9 Tensile strength (vertical and horizontal direction) Vertical >75N/ 15mm
Horizontal >85N/ 15mm 10 Heat-seal condition Temperature: 300-400F
Time: 0.6-4.5 seconds
Pressure: 30-70 PSI 11 Peel strength >3.0N/ 15mm 12 Puncture resistance >100N MIL-STD-3010 13 Water vapor permeance J-STD-033 0.002mg/100 in2 /24h ASTM F 1249-13

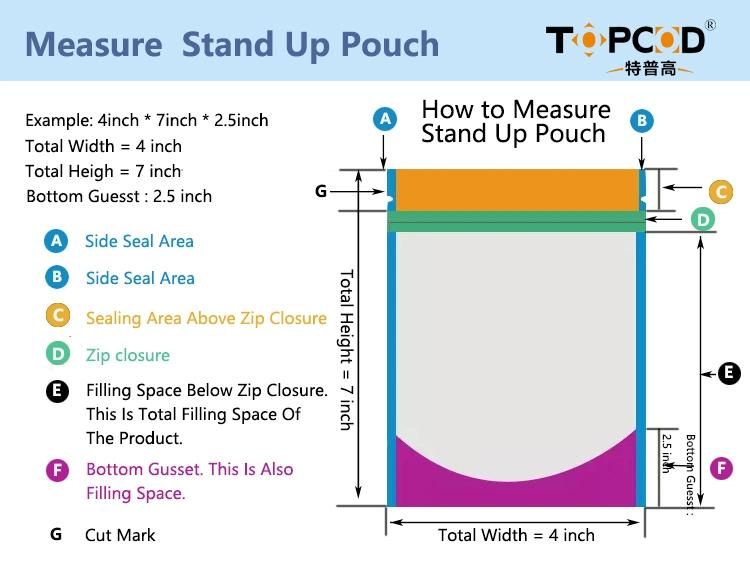

Measure
Applications:
Mainly applicable to all kinds of packing of PC Board, electronic components, modems, CD-Rom, electronic industry component protection, Fiber
optics components, Telecommunications and radio communications, Medical industry, disk drive and automative manufacturing etc .
Advantage:
For TOPCOD
Why did you choose us?
There are 1500-plus customers as far as 2019. Topcod has already established long-term cooperation with more than 100 well-known enterprises and brands.
We were established in 2004, and set up branches in Shenzhen, Shunde, and Germany. We are a high-tech enterprise integrating scientific research, production, marketing, technical services, packaging consulting, quality testing, and providing solutions.
2-OEM/ODM available.
3-Eco-friendly.
4-Free sample and fast delivery time
5-SGS, MSDS, REACH, RoHS, DMF free approval. Most importantly, we have silica gel REACH registration.
6-Technique research development---Participate in formulating and revising industry standard and national standard about desiccants & oxygen absorber, organizing colloquias with leading enterprises in various industries, providing professional solutions.
7-Independent research and develop wrapping paper of desiccants---Detuch paper(which is eco-friendly, water-proof, dust-proof, smooth, lint-free)
8-Workshop Display - more than 200 desiccants' machines. Foshan, Shanghai, Shenzhen, HongKong, Germany all we have set sales and branch services can satisfy your requirement.

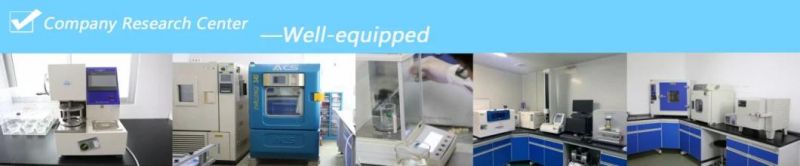

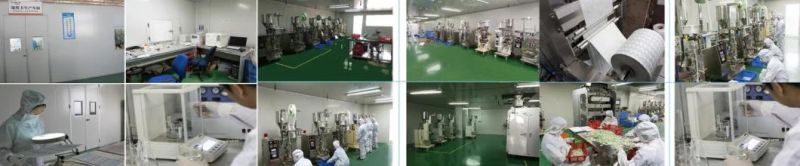

Lab and Workshop display:
TOPCOD always adhere to the belief that,
Only improve and explore the technology,
Can we mrrt customers needs,
Can we keep pace the times,
Can we lead the way in this industry all the time......
Owns advanced mechanized production line
Combines R&D, production and sale together

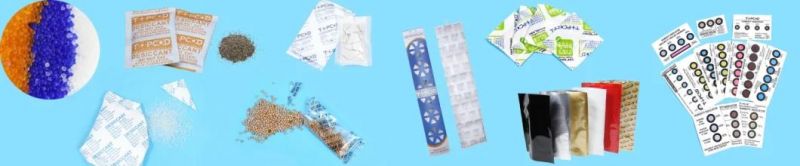

Other product range:
Industrial desiccant (silica gel desiccant / montmorillonite desiccant / activated clay desiccant);
Food & pharmaceutical grade desiccant;
Deoxidizer (Oxygen scravenger/absorber);
Activated carbon deodorant;
Humidity Indicator Card (HIC);

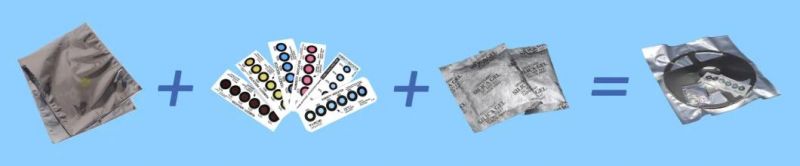

Esd aluminum foil bag / Vacuum bag / VCI bag / rust proof bag (film);
