• Specification：FREE OPTION
• Transport Package：Carton
• Logo Printing：Available
• Size：Customized
• Brand：Stm
• Packing：Carton
• Dimension：Various
• Pattern：Pneumatic
• Seal：Heating
• OEM：Acctable
• Model NO.：air dunnage bag
• Trademark：STM
• Origin：China Suzhou
• HS Code：48194000
• Production Capacity：20ton

Basic Info.

Model NO. air dunnage bag OEM Acctable Seal Heating Pattern Pneumatic Dimension Various Packing Carton Brand Stm Size Customized Logo Printing Available Transport Package Carton Specification FREE OPTION Trademark STM Origin China Suzhou HS Code 48194000 Production Capacity 20ton

Product Description

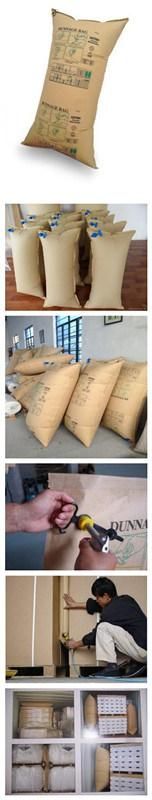

2016 hot selling air dunnage bag for sale
PRODUCT NAME
DUNNAGE BAG/ CARGO AIR BAG/ INFLATABLE AIR BAG/ CARGO SECURING DUNNAG BAG
2000*2200mm kraft and  plastic bag for container shipping
inflatable PP WOVEN Air packing bag with two layers

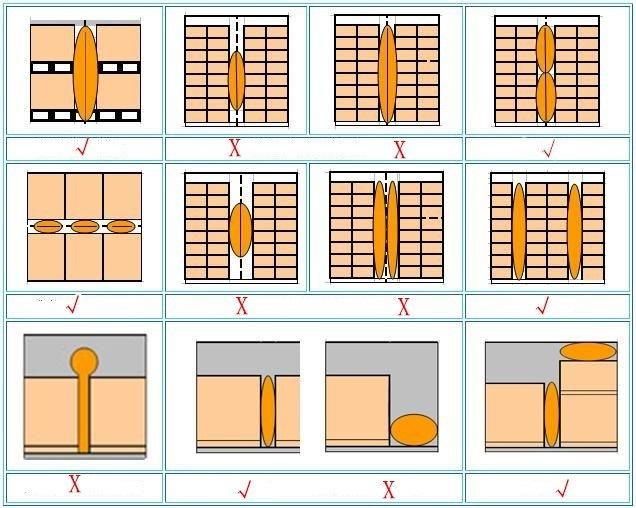

Loading Tips:

• Clean the floor of the trailer and inspect floors, walls and roof for nails or holes before loading.  Remove or hammer down nails or other sharps.
• Load skids tight from front to back and from side to side.  Tight means touching.
• Use side shifters on the fork lift to position freight in firm contact with the sidewall or other skid of freight.  Also to control void size.
• Alternate the void from side to side to balance the load.
• Put tallest freight in the nose at the first load position and bag it.
• Put the most fragile freight towards the nose for the softest ride.
• Use additional bags when necessary to stabilize unsteady skids.
• Always bag when dropping from two high to one high loading.
• Always bag the final load position.

Techniques for Easy Installation:

• Insert inflation tool into valve.
• Visually locate the best void to install the bag while walking in.
• Give the bag a small puff of air to give it some stiffness and bulk.
• Insert bag all the way into the void before inflating. Valve should be at top if possible. One hand should be on the inflation tool and one hand should be positioning the bag.
• If bagging a high load position, you may tape the bag to the top of one unit before loading the other side.
• When inflating, watch the freight not the bag. 1 - 3 lbs psi recommended. When the freight is tight against the wall, disengage the inflator. Don't worry, the bag will not over-inflate!  Installation is complete when the inflator blows back.
• After inflation, screw on over-cap.

Deflation (Patented walk-away feature):

• Remove over-cap, push valve in and twist one quarter turn clockwise.
• You can walk-away while bag deflates!
• Remove bag, inspect for damage and set aside for reuse.

•

SIZE    (cm)		MATERIAL	(cm)	(Mpa)
050*100		PE/PP+KRAFT	25	0.06	≤3.5T
050*150		PE/PP+KRAFT	25	0.06	≤3.5T
060*100		PE/PP+KRAFT	28	0.06	≤3.5T
060*120		PE/PP+KRAFT	28	0.06	≤4.5T
060*150		PE/PP+KRAFT	28	0.06	≤4.5T
080*120		PE/PP+KRAFT	38	0.06	≤4.5T
080*160		PE/PP+KRAFT	38	0.06	≤4.5T
080*180		PE/PP+KRAFT	38	0.06	≤4.5T
090*120		PE/PP+KRAFT	45	0.06	≤4.5T
090*180		PE/PP+KRAFT	45	0.06	≤4.5T
100*120		PE/PP+KRAFT	50	0.06	≤4.5T
100*160		PE/PP+KRAFT	50	0.06	≤4.5T
100*180		PE/PP+KRAFT	50	0.06	≤4.8T
100*200		PE/PP+KRAFT	50	0.06	≤4.8T
100*220		PE/PP+KRAFT	50	0.06	≤4.8T
100*240		PE/PP+KRAFT	50	0.06	≤4.8T
120*120		PE/PP+KRAFT	60	0.06	≤4.8T
120*180		PE/PP+KRAFT	60	0.06	≤4.8T
120*200		PE/PP+KRAFT	60	0.06	≤4.8T
120*220		PE/PP+KRAFT	60	0.06	≤4.8T
120*240		PE/PP+KRAFT	60	0.06	≤4.8T
