Liner Die Cutting Punching Machine for Bottle Cap
Ruian Furi Packaging Machinery Co., Ltd.- Liner：PE Foam, Aluminum Foil, Press-Sensitive Liner
- Labor Needed：1 Worker
- Guarantee：1 Year
- After-Sale Service：Engineers Available for Overseas Machinery Service
- Mold：Replaceable
- Transport Package：Wooden Box
Base Info
- HS Code：8422303090
- Origin：China
- Trademark：FURI
- Specification：3000*1200*1200MM
- Model NO.：FRTB-CY420
- Production Capacity：10 Sets,Month
Description
Basic Info.
Model NO. FRTB-CY420 Specification 3000*1200*1200MM Trademark FURI Origin China HS Code 8422303090 Production Capacity 10 Sets/MonthProduct Description

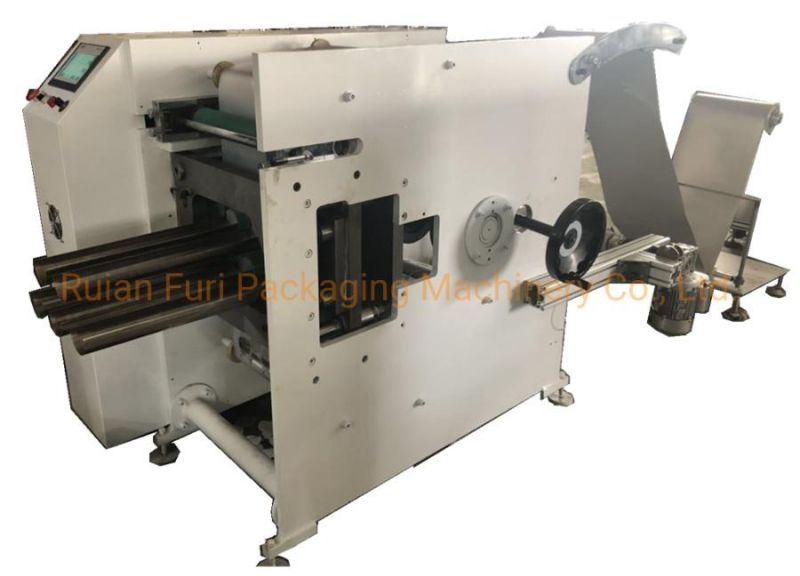

FRTB-CY420 Liner Die Cutting Punching Machine
Scope of Application
This Seal/Foil/Liner Die Cutting / Punching Machine is widely used in liner manufactures, closure manufactures, pharmaceutical factories and packing factories. This machine applies to aluminum foils, aluminum-plastic liners, PE foams, press-sensitive liners and other printed liners. It can punch the liner roll to be the shapes you need.
Features
- PLC control, stepping motor feeding, frequency control of motor speed, touching screen operation.
- Die-cutting uses linear guideway, crankshaft lick drive.
- Cutting die's depth is adjustable and horizontal installed. The liners after punching are collected in the liner holder pipes automatic, then wrap the package bags after it is full, the whole process is done.
- The cutting die is replaceable, by changing mole parts, you can cut liner into different sizes.
Technical Parameters
| Power supply | 220V / 50-60Hz / Single Phase |
| Dimension | 3000*1000*1200mm |
| Speed | 7-12 pieces per punch 100-120 punches per minute |
| Power consumption | 3KW |
| Weight | 1500KG |

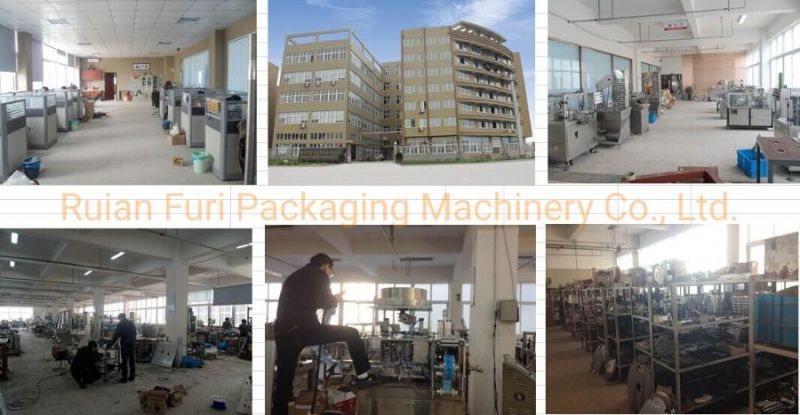

OUR COMPANY
MACHINE PACKAGING
More Details , Kindly contact us.
Attn: Becky Pan
Location: Feiyun Industrial Area, Ruian, Wenzhou City, Zhejiang Province
By Flight: Arrive at Wenzhou Airport
By Train: Arrive at Ruian Station
