• Specification：From diameter 13.5mm to 40mm
• Transport Package：Enhanced Corrugated Carton + Pallets
• Price Term：Fob, CIF, CNF etc.
• Packaging：Strong Corrugated Carton
• Raw Material：Aluminum Purity Greater Than 99.7%
• Color Printing：Max 6 Colors or Paper Stickers
• Custom Sample Time：7 Days
• Model NO.：OEM
• Trademark：Customized
• Origin：China
• HS Code：76121000
• Production Capacity：300, 000 Pieces Per Day

1Raw material: 99.7% purity aluminum slug or flake2100% recyclable, eco-friendly3Better impression of printing4Max 6 colors offset printing; label or sticker will also do5Inner lacquer phenolic epoxy resists strong ammonia or acid6Wide use range: pharmaceutical, cosmetic & toiletry, like hair colour cream, hand cream, lip balm, chemical, pigment, painting, animal food, nutrition gel, and other the semi-liquid products including pharmacy ointment products such as eye ointment, personal care products such as shaving cream, shoe polish etc..
More details about the Aluminum Collapsible Tube:
 Wide ranging diameters:13.5 mm, 16 mm, 19 mm, 22 mm, 25 mm, 28 mm, 30 mm, 32 mm, 35 mm, 38mm, 40mmOrifice:Membrane sealed, open, with sanitary screwThread/ Screw:M7, M9, M11, M12, M15, M16Various nozzle:membrane-sealed, open end, extended nozzle, long nozzle, nasal tips, ophthalmic tipsShoulder finish:Plain, uncoated, polished, coated, printing, patternInternal coating/lacquer:High-quality phenolic epoxy resin.
It is critical to adapt the high-quality and anti-leaking epoxy phenolic with reliable and stable performance to your tubes, and also it's key element to spray the inner coating properly, OR the coating won't protect the products from corrosion and even leads to leakage.Bottom sealant:It is optional and there are various sealants for the tubes, and it depends on customers' filling.

Regular volume and size for your reference:
Kindly note that the size may varies due to different fomulation of products.


Diameter	Length(mm)	Suggested Volume
13.5	55~65	5ml / 0.17oz
13.5	62~71	6ml / 0.20oz
13.5	70~80	7ml / 0.24oz
13.5	78~85	8ml / 0.27oz
16	60~70	10ml / 0.34oz
16	72~80	10ml / 0.34oz
16	100~110	15ml / 0.51oz
19	57~70	15ml / 0.51oz
19	77~88	15ml / 0.51oz
19	96~107	20ml / 0.68oz
19	115~126	25ml / 0.85oz
22	95~105	25ml / 0.85oz
22	108~119	30ml / 1.01oz
22	122~133	35ml / 1.18oz
25	89~100	30ml / 1.01oz
25	101~112	35ml / 1.18oz
25	140~150	50ml / 1.69oz
28	140~145	60ml / 2.03oz
30	120~130	50ml / 1.69oz
30	170~175	90ml / 3.04oz
30	175~180	100ml / 3.38oz
32	165~170	100ml / 3.38oz
32	175~180	120ml / 4.06oz
35	165~170	120ml / 4.06oz

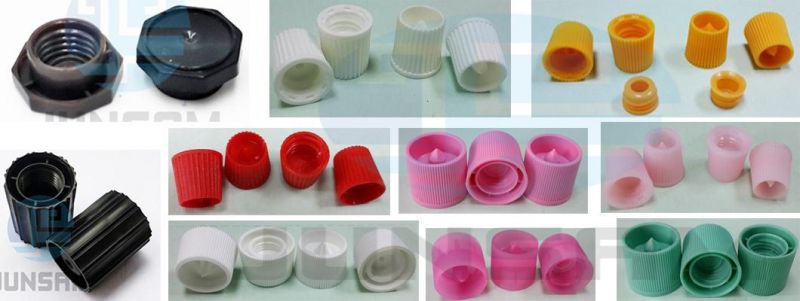

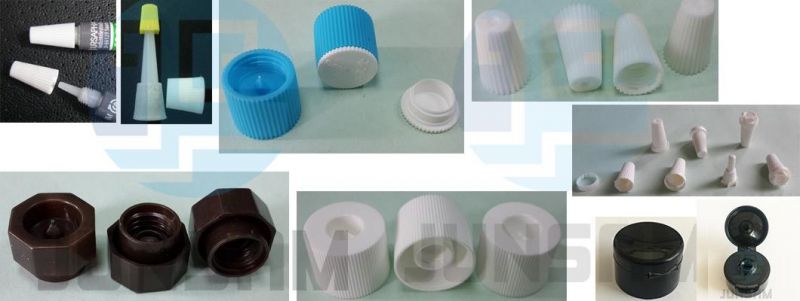

Various plastic caps besides the regular ones for the Empty Aluminum Tubes:

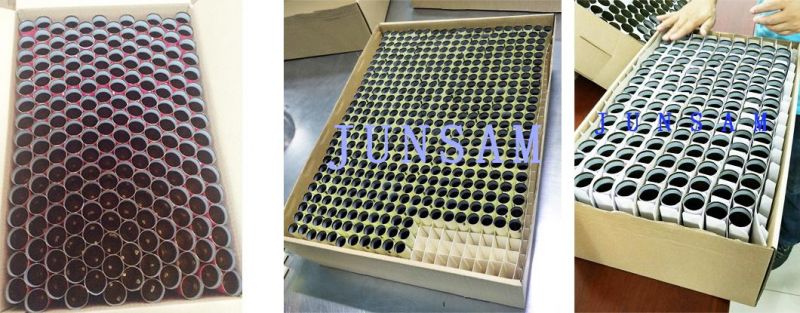

Regular Packing:                                                                    Packing with dividers:

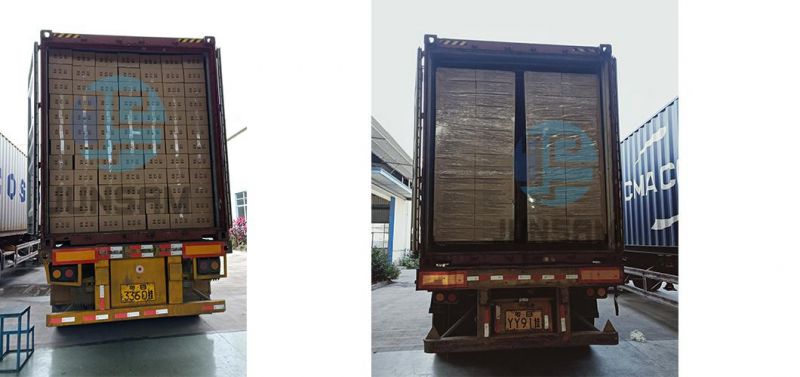

Regular loading:                                                                                                 Loading with pallets:








FQA:

1.
Q:  How is your MOQ of the aluminum Collapsible Packaging Tube?
A: Our MOQ is generally 50,000 pieces each design/art, but for the customers who have various skus, we could do 30,000 pieces as well to consolidate

 2.
Q: How is your leadtime?
A: It takes generally 15 to 20 days. It could be shorter in slow season; while it could be longer in peak season.
     But we always do our best to help deliver the urgent orders.

3.
Q: Can we get some samples of aluminum tube from you? Are you going to charge us for the samples?
A:  Storage samples are always free any time.  But customized samples with your art printed will cost for the mold, and it takes about 7 days to deliver customized samples.

4.
Q: Our company is launching several new products, and we're looking for a metal collapsible tube type. This is the first time we work on the aluminum tubes, what would be the process if we are going to orde from you?
A:  We could follow the steps as:
~ We will quote you the price per your requirement about the tubes. (Basic information about dimater and length or volume, cap will be needed. If you don't know anything about the size, you could refer to the Volume chart we provided above.)
~  Free samples will be sent to you for your evaluation or testing inner lacquer stability.
~ Customized samples will be made for you given you provided the artwork.
~ After you approved the samples, we could start the cooperation procedure.

5.
Q: What is your payment term?
A: Normally 30% deposit before production and 70% balance should be paid by T/T before shipment, while it      could be negotiable for the good credit old customers.

6.
Q: What is the diameter range are you capable of with the aluminum tube?
A:  Our general diameter ranges from 13.5 mm to 40 mm.
